SD Series
|
 |
 |
 |
 |
| Jintai SD15 Hydraulic Rotary Bore Pile Drilling Rig |
Jintai SD20C Hydraulic Rotary Bore Pile Drilling Rig |

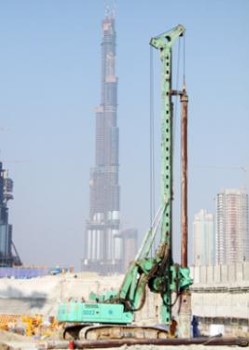

Jintai SD25 Hydraulic Rotary Bore Pile Drilling Rig |
Jintai SD28 Hydraulic Rotary Bore Pile Drilling Rig |
| Maximum Torque (kNm): |
150 |
| Engine Power (kW): |
133 |
| Maximum Diameter (mm): |
1500 |
| Maximum Depth (m): |
50 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
45000 |
|
| Maximum Torque (kNm): |
200 |
| Engine Power (kW): |
196 |
| Maximum Diameter (mm): |
2000 |
| Maximum Depth (m): |
61 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
57000 |
|
| Maximum Torque (kNm): |
250 |
| Engine Power (kW): |
221 |
| Maximum Diameter (mm): |
2000 |
| Maximum Depth (m): |
56 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
67000 |
|
| Maximum Torque (kNm): |
286 |
| Engine Power (kW): |
263 |
| Maximum Diameter (mm): |
2400 |
| Maximum Depth (m): |
85 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
73000 |
|
| View PDF |
View PDF |
View PDF |
View PDF |
SH Series
|
 |
 |
 |
|
| Jintai SH25C Hydraulic Rotary Bore Pile Drilling Rig |
Jintai SH30 Hydraulic Rotary Bore Pile Drilling Rig |
Jintai SH36 Hydraulic Rotary Bore Pile Drilling Rig |
|
| Maximum Torque (kNm): |
250 |
| Engine Power (kW): |
221 |
| Maximum Diameter (mm): |
2000 |
| Maximum Depth (m): |
60 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
63900 |
|
| Maximum Torque (kNm): |
286 |
| Engine Power (kW): |
263 |
| Maximum Diameter (mm): |
2500 |
| Maximum Depth (m): |
85 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
75000 |
|
| Maximum Torque (kNm): |
360 |
| Engine Power (kW): |
300 |
| Maximum Diameter (mm): |
2500 |
| Maximum Depth (m): |
78 |
Operating Weight (kg):
(No Kelly Bar/Drilling Tool) |
86200 |
|
|
| View PDF |
View PDF |
View PDF |
|
SG Series
|
 |
 |
 |
 |
| Jintai SG22 Hydraulic Diaphragm Wall Grab Rig |
Jintai SG25 Hydraulic Diaphragm Wall Grab Rig |
Jintai SG35C Hydraulic Diaphragm Wall Grab Rig |
Jintai SG46 Hydraulic Diaphragm Wall Grab Rig |
| Engine Power (kW): |
125 |
| Maximum Closing Force (t): |
80 |
| Maximum Extraction Force (kN): |
220 |
| Maximum Weight of Grab (kg): |
10400 |
| Maximum Width (mm): |
600 |
| Maximum Depth (m): |
45 |
Operating Weight (kg):
(No Grab/Frame) |
45000 |
|
| Engine Power (kW): |
133 |
| Maximum Closing Force (t): |
80 |
| Maximum Extraction Force (kN): |
250 |
| Maximum Weight of Grab (kg): |
10400 |
| Maximum Width (mm): |
600 |
| Maximum Depth (m): |
45 |
Operating Weight (kg):
(No Grab/Frame) |
45000 |
|
| Engine Power (kW): |
196 |
| Maximum Closing Force (t): |
120 |
| Maximum Extraction Force (kN): |
350 |
| Maximum Weight of Grab (kg): |
17800 |
| Maximum Width (mm): |
1000 |
| Maximum Depth (m): |
50 |
Operating Weight (kg):
(No Grab/Frame) |
58000 |
|
| Engine Power (kW): |
263 |
| Maximum Closing Force (t): |
120 |
| Maximum Extraction Force (kN): |
460 |
| Maximum Weight of Grab (kg): |
22900 |
| Maximum Width (mm): |
1200 |
| Maximum Depth (m): |
75 |
Operating Weight (kg):
(No Grab/Frame) |
69000 |
|
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
|
|
| Jintai SG50 Hydraulic Diaphragm Wall Grab Rig |
Jintai SG60 Hydraulic Diaphragm Wall Grab Rig |
|
|
| Engine Power (kW): |
263 |
| Maximum Closing Force (t): |
160 |
| Maximum Extraction Force (kN): |
500 |
| Maximum Weight of Grab (kg): |
33000 |
| Maximum Width (mm): |
1500 |
| Maximum Depth (m): |
80 |
Operating Weight (kg):
(No Grab/Frame) |
87100 |
|
| Engine Power (kW): |
298 |
| Maximum Closing Force (t): |
160 |
| Maximum Extraction Force (kN): |
600 |
| Maximum Weight of Grab (kg): |
33000 |
| Maximum Width (mm): |
1500 |
| Maximum Depth (m): |
100 |
Operating Weight (kg):
(No Grab/Frame) |
92100 |
|
|
|
| View PDF |
View PDF |
|
|
|
|
|
|
 |
 |
 |
 |
|
| T15 |

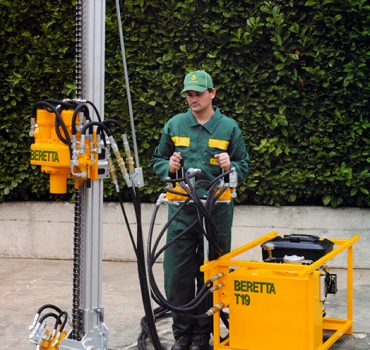

T19 |
T19 35 HP |
|
| Fully modular and portable drilling machine for micro-piles and tie-rods. |
Fully modular and portable drilling machine for micro-piles and tie-rods. |
|
|
| View PDF |
View PDF |
|
|
 |
 |
 |
 |
| T21 |
T22 Geo |
T22 S1 |
T22 S2 |
| Tracked drilling machine for micro-piles, tie-rods, core drilling operations; modular, with mast that can be positioned manually in any direction. |
Tracked drilling machine for micro-pile drilling operations; weight of basic machine 1350kg with winch, double vice and water pump as optional equipment. |
Tracked drilling machine equipped with 360° hydraulic bearing ring for micro-piles, tie-rods and core drilling operations. |
Tracked drilling machine equipped with 360° hydraulic bearing ring for horizontal drilling flush with the ground. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
|
|
| T25 |
T26 |
|
|
| Versatile tracked drilling machine with variable opening carriage and mast that can be positioned in any direction |
Tracked drilling machine particularly suitable for small water wells and core drilling operations; it can be equipped with different types of water or mud pumps |
|
|
| View PDF |
View PDF |
|
|
 |
 |
 |
 |
| T41 |
T43 |
T44 |
T46 |
| Compact tracked drilling machine of reduced sizes (1-metre width); powerful and suitable for micro-piles, core drilling operations and water wells. |
Tracked drilling machine with separate engine; versatile, powerful and ideal when working inside buildings and in difficult access areas. |
Compact and powerful tracked drilling machine; mast in standard version, 3-metre working stroke; particularly suitable for water wells and core drilling operations. |
Multi-functional, powerful tracked drilling machine with variable opening carriage (1000-1400 mm); to be specifically used for tie-rod and micro-pile drilling operations. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
|
|
|
| T47 Geo |
|
|
|
| Powerful tracked drilling machine; suitable for core drilling operations and water wells, mast with 3-4 metre working stroke. |
|
|
|
| View PDF |
|
|
|
 |
 |
 |
 |
| T51 |
T52 |
T53 |
T55 |
| Tracked drilling machine ideal for core drilling operations and water wells of medium depths. |
Tracked drilling machine for core drilling operations and water wells, it can be equipped with the special MDR324 double rotary vice. |
Powerful tracked drilling machine of compact sizes; its peculiarity lies in the engine body that can be detached independently from the drilling machine. |
Tracked drilling machine featuring the innovative and unique tilting system which confers excellent stability and control properties to the mast in any type of drilling operation. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
 |
|
| T57 S |
T57 Geo |
T59 |
|
| Tracked drilling machine of medium size (13-14 ton) featuring the typical tilting system implemented on most machinery available on the market. |
Tracked drilling machine, ideal for water wells, geo-thermal and core drilling operations; it can also be equipped with double rotary head, triple vice and different types of water pumps. |
Tracked drilling machine with the special carriage boasting self-leveling tilting tracks; ideal when working in mountain areas. |
|
| View PDF |
View PDF |
View PDF |
|
 |
 |
|
|
| T151 / T151 S |
T159 M1 |
|
|
| The Beretta T151 / T151 S drilling rig is the ideal solution for soil investigation (water wells) and jet grouting (micro-piles). |
The Beretta T159 M1 drilling rig is the ideal solution for anchoring (micro-piles) and jet grouting (water wells). |
|
|
| View PDF |
View PDF |
|
|
|
|
|
|
Attas Itech
|
| Bi-Directional Static Loading Test |
|
|
|
| View PDF |
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
| CF1 |
CF2 |
CF2.5 |
CF3 |
| Provided with a special mast divided in two sliding sections with pull-down force given by the counter-slide device to lower the mast group and achieve the lowest headroom working position. The CF2 is equipped with a short locking kelly bar which grant it to reach 10m deep working even under 2500mm. With a max undercarriage width of 1300mm (in working mode), reduceable to just 1000mm in transport mode, the CF2 can move in very narrow places and restricted areas. It could even get into the entrance door of civil buildings! Moreover the undercarriage is provided with rubber crawlers to work safely over fragile or luxury floors. |
Provided with a special mast divided in two sliding sections with pull-down force given by the counter-slide device to lower the mast group and achieve the lowest headroom working position. The CF2 is equipped with a short locking kelly bar which grant it to reach 10m deep working even under 2500mm. With a max undercarriage width of 1500mm, the CF2 can move in very narrow places and restricted areas. It could even get into the entrance door of civil buildings! Moreover the undercarriage is provided with rubber crawlers to work safely over fragile or luxury floors. |
Provided with a 2 sections telescopic mast to work with a 15 or 18 m locking kelly bar in normal configuration, with the possibility to close down the 2 telescopic sections to reduce the total height and work in low headroom position. Thanks to a special counterslide, it’s possible to lower the whole mast group down the ground and work even under 3000 mm with a special “short” kelly bar. With a max width of 2000 mm, the CF2.5 can move in narrow places and restricted areas. The undercarriage is provided with rubber crawlers to work over fragile or luxury floors wiothout problem. Also expanding tracks are available. |
Provided with a 2 sections mast to work with a 28 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position under 6 m with a special “short” kelly bar for 15 m depth. With a max width of 2320 mm, the CF3 can move in narrow places and restricted areas without problems. It available also mounted on “0 swing” excavator base. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
 |
 |
| CF3 S |
CF4 |
CF6 |
CF6 Plus |
| Provided with a 3 sections telescopic mast to work with a 22 m locking kelly bar, with the possibility to close down the 3 telescopic sections to reduce the total height and work in low headroom position even under 3500 m with a special “short” kelly bar for 10 m depth. With a max width of 2320 mm, the CF3 S can move in narrow places and restricted areas. The undercarriage is provided with rubber crawlers to work over fragile or luxury floors wiothout problem. |
Provided with a 2 sections mast to work with a 24 m or 28 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position. In particular, lowering the parallelogram which support the mast, it’s possible to work under 5000 mm headroom with a special “short” kelly bar for 15 m depth. The CF6 is equipped with expanding tracks which ensure a high stability in working conditions and at the same time a reduced width in transport mode (2100 mm) so that it can be easy loaded and moved with a standard low truck. |
Provided with a 2 sections mast to work with a 30 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position. under 7500 mm with a special “short” kelly bar for 18 m depth. Powerful, Versatile and Reliable, the CF6 has being played the role of TES CAR’s business card all around the world for years! |
The new CF6 PLUS is provided with a special pull-down system by motoreducer by chain in order to grant a rotary stroke of 8300mm, useful to insert long casing pipes and also to pass quickly from the Kelly Bar mode to CFA, Soilm Mixing and Micropiles configuration. Thsi machine it’s also provided with parallelogram and a 2 sections mast to work with a 32 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position. under 7500 mm with a special “short” kelly bar for 18 m depth. Powerful, Versatile and Reliable, the CF6 has being played the role of TES CAR’s business card all around the world for years! The undercarriage is provided with expanding tracks 2300 – 3200mm. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
 |
 |
| CF8 |
CF10 |
T Series |
TES20 |
| Provided with a 2 sections mast to work with a 30m or 40m locking kelly bar (according to the undercarriage type, fixed or with expanding tracks), with the possibility to remove the upper mast section to reduce the total height and work in low headroom position under 8000 mm with a special “short” kelly bar for 18 m depth. Powerful, Versatile and Reliable, the CF6 is the new bet of TES CAR to let its customer face the jobbsites with hard ground which require a certain torque but also with limited access and low headroom. |
The CF10 in diaphragms mode can use the exhisting kelly bar of the standard version for bored piles, adding the diaphragms kit. Alternatively the rig can be equipped with a square kelly for a better working precision. The CF10 can also do close to the wall diaphragms thanks to a special device which replace the standard rotary head. |
|
Suitable for the reinforcement of exhisting foundations, micropiles for retaining walls, can work in very limited spaes and thanks to the separate power pack, can work inside exhisting buildings without problems of smoke or pollution. Can be provided with a bigger rotary of 5 kNm and a more powerful engine and can be equipped in different working modes: micropiles, soil investigation, core drilling, DTH hammer. The TES20 is also equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations. |
| View PDF |
View PDF |
View PDF |
View PDF |
 |
 |
 |
|
| TES40 |
TES40-1000 |
TES100 |
|
| Multifunctional rig for micropiles, soil investigation, core drilling and water wells. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 750 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES40 is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and can also be provided with a water pump of 60 l/min at 90 bar for the hole cleaning during the drilling operations. The TES40 is particularly suitable to work in limited access areas and narrow places and, thanks to the separate power pack, can work inside exhisting buildings without problems of smoke or pollution. |
Horizontal drilling rig for roads, rivers and severs crossing. Macchina per perforazione orizzontale per attraversamento stradale, fognario e fluviale. This rig can drill and drive casing pipes at the same time, reducing the working time. Thanks to the separate power pack, the TES40-1000 can work in limited spaces. |
Multifunctional rig for micropiles, soil investigation, core drilling, tie backs and water wells up to 150 m. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 1000 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES100 is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and is also equipped with a water pump of 200 l/min at 60 bar for the hole cleaning during the drilling operations. The TES100 can work with direct or reverse circulaton for bigger diameters. |
|
| View PDF |
View PDF |
View PDF |
|
|
|
|
|
 |
 |
 |
|
|
| MIX-VISION |
JET-VISION |
Other Systems |
|
| MIX-VISION measurement system is a new generation device used for the drilling and grouting parameters in the technology of soil mixing. It is based on Windows CE unit with a 7″ color display. |
JET-VISION measurement system is a read-out and sensor device for the drilling and injection parameters used ion Jet-Grouting technology (mono-, bi- and triple-fluid). |
http://www.geomisure.com |
|
| View PDF |
View PDF |
|
|
